Product description
Dimensions
BNI XG1-505-0A5-R067 / BNI XG3-302-0B5-R067
BNI XG3-508-0B5-R067 / BNI XG5-508-0B5-P067
BNI XG5-508-0B5-R067 / BNI XG5-538-0B5-R067
Dimensions BNI XG1-505-0A5-R067 / BNI-XG3-302-0B5-R067 / BNI-XG3-508-0B5-R067 / BNI XG5-508-0B5-R067 / BNI XG5-538-0B5-R067
BNI XG3-302-1B5-Z067 /
BNI XG5-508-1B5-Z067 / BNI XG5-538-1B5-Z067
Dimensions BNI XG3-302-1B5-Z067 / BNI XG5-508-1B5-Z067 / BNI XG5-538-1B5-Z067

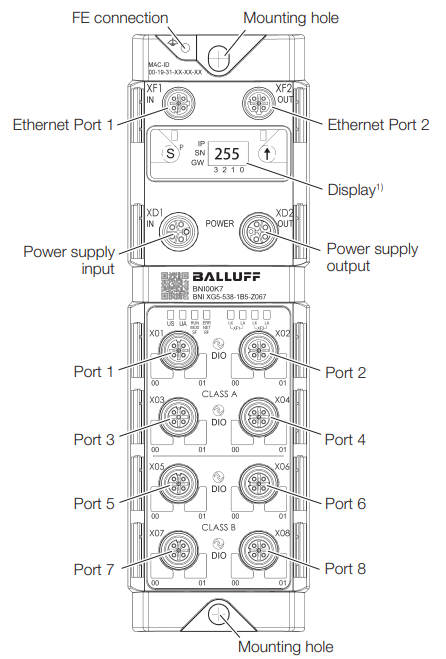

Construction
Note
1 ) Only for BNI XG5-…-1B5-… _variants.
Function
The IO-Link multiprotocol master is a decentralized and configurable gateway that processes and evaluates the input and output signals of standard sensors and actuators as well as process data from connected IO-Link devices.
The data is transmitted via an existing fieldbus interface to a higher-level controller set up by the user for further processing.
A web server is available on the IO-Link master for configuration and diagnostics.
Note
For configuration information, see the configuration guide at www.balluff.com on the product page.
| Variant | I/O-Port | IO-Link Port | |
| - | - | Class A | Class B |
| BNI XG1-505-0A5-R067 | - | 1...8 | – |
| BNI XG3-302-0B5-R067 | 1...8 | – | – |
| BNI XG3-302-1B5-Z067 | 1...8 | – | – |
| BNI XG3-508-0B5-R067 | – | 1…8 | – |
| BNI XG5-508-0B5-P067 | – | 1…8 | – |
| BNI XG5-508-0B5-R067 | – | 1…8 | – |
| BNI XG5-538-0B5-R067 | – | 1…4 | 5…8 |
| BNI XG5-508-1B5-Z067 | – | 1…8 | – |
| BNI XG5-538-1B5-Z067 | – | 1…4 | 5…8 |
Note
Please check whether IO-Link is supported by your module before using this function. For more information on product variants that support IO-Link, see Supported product variants

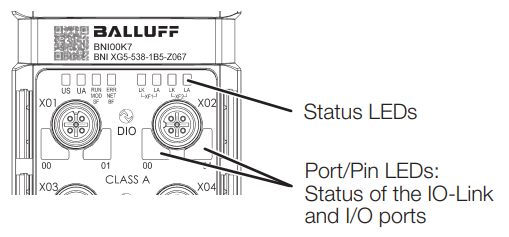

Display elements
Note
For flashing behavior in autodetect mode, see Startup.
Status LEDs
Note
Specified voltage level according to DIN EN 61131.
Power supply
| LED | Signal | Meaning |
|---|---|---|
| US | Green, static | Input voltage OK |
| Red flashing | Input voltage too low (< ~20.5 V DC) | |
| UA | Green, static | Output voltage OK |
| Red flashing | Output voltage too low (< ~20.5 V DC) or too high (> ~28.7 V DC) | |
| Red, static | No output voltage present (< ~10.4 V DC) |
Profinet communication
| LED | Signal | Meaning |
|---|---|---|
| SF | Off | No error |
| Red, static | Watchdog timeout; channel, general or extended diagnostics present; system error | |
| Red flashing | DCP signal service started via bus. | |
| BF | Off | No error |
| Red, static | Low speed of physical link; or no physical link | |
| Red flashing | No data exchange or no configuration |
Ethernet/IP communication
| LED | Signal | Meaning |
|---|---|---|
| MOD | Green flashing | Incorrect or no module configuration |
| Green, static | Module in progress. | |
| Red flashing | Fixed bus cycle not possible | |
| Red-Green Flashing | Starting sequence | |
| NET | Off | Module has no IP address. |
| Green flashing | Module has an IP address, but no connection established. | |
| Green, static | Connection is established. | |
| Red flashing | Connection timeout | |
| Red-Green Flashing | Starting sequence |
EtherCAT communication
| LED | Signal | Meaning |
|---|---|---|
| RUN | Off | Device is in INIT state. |
| Green flashing | Device is in PRE-OPERATIONAL state. | |
| Green slowly flashing | Device is in SAFE-OPERATIONAL state. | |
| Green, static | Device is in OPERATIONAL state. | |
| ERR | Off | No errors |
| Red flashing | Invalid configuration | |
| Red slowly flashing | Local error | |
| Red, fast flashing | Application watchdog timeout | |
| Red, static | Error in application |
Modbus TCP communication
| LED | Signal | Meaning |
|---|---|---|
| RUN | Green slowly flashing | Module is ready to establish a connection. |
| Green, static | Connection is established. | |
| Yellow, fast flashing | Existing connection has been lost. |
Ethernet Ports
| LED | Signal | Meaning |
|---|---|---|
| LA | Off | No data transfer and data reception |
| Green, flashing | Send and receive data with connected device. | |
| LK | Off | Ethernet connection is not yet established. |
| Green, static | Ethernet connection established with another device. |
Port/Pin LEDs
| LED number | Assignment |
|---|---|
| LED 0 | Pin 4 |
| LED 1 | Pin 2 |
Port/Pin LEDs Standard Port
| Signal | Meaning |
|---|---|
| Off | State of input or output pins is 0 |
| Yellow, static | State of input or output pins is 1 |
| Both LEDs red flashing | Short circuit of sensor supply between pin 1 and pin 3 |
| Red, static | Short circuit at output on pin 2/4 against pin 3 |
| Red, static | No high signal at diagnostic input |
| Red, static | 24 V input signal on configured output (actuator warning) |
Port/Pin LEDs IO-Link Port
| Signal | Meaning |
|---|---|
| Green, static | IO-Link connection active |
| Green flashing | No IO-Link connection or incorrect IO-Link device |
| Green, fast flashing | IO-Link: Preoperate during data storage |
| Red, fast flashing | Validation failed / incorrect configuration of the IO-Link data length |
| Red, fast flashing | Data storage failed / incorrect device for data storage |
| Red, static | IO-Link: Short circuit of pin 4 against pin 3 |
Labeling
Note
Only for BNI XG…-…-Z067 _variants.
Note
Only for BNI XG…-…-R067 _variants.
Symbol on product
Warning
General warning sign
► Observe the additional approval-related and safety-related information
in the product documentation.
