Product description

../../_images/BTL_%28BZ%29EC_E11A_010_Aufbau_EntryRod_00.svg

Dimensions, design and function

No.

Description

1

Unusable Area:

BTL_ECA… 30 -1 mm with thread M4/4.5 deep

BTL_ECE… 2“ - 0.04“ with thread M4/4.5 deep

2

Zero point

3

Measuring length

4

End point

5

Unusable area

6

Mounting surface

7

Thread size:

BTL B…:M18x1,5

BTL Z…: 3/4”-16 UNF

8

Magnet [2]

9

Rod end

Construction

Electrical connection: The electrical connection is made via a M12 plug connection (see Type code).

Housing: Housing containing the processing electronics.

Fastening: We recommend assembling the following BTLs on the mounting thread:

  • BTL B…: M18×1.5

  • BTL Z…: 3/4“-16UNF

There is an additional thread at the end of the rod to support large measuring lengths.

Position magnet: Defines the position to be measured on the waveguide. Magnets are available in various models and must be ordered separately (see Accessories).

Measuring length: Defines the travel/length range available. Sensors with measuring lengths from 25 mm to 5000 mm are available.

Function

To determine the position of a plant component, a magnet is connected to the component. Together they are moved along a waveguide located inside the BTL.

An internally generated INIT pulse interacts with the magnetic field of the magnet to generate a torsional wave in the waveguide which propagates at ultrasonic velocity. The component of the torsional wave which arrives at the end of the waveguide is absorbed in the damping zone to prevent reflection. The component of the torsional wave which arrives at the beginning of the waveguide is converted by a coil into an electrical signal. The position of the magnet and thus at the same time that of the plant component is determined from the running time of the shaft.

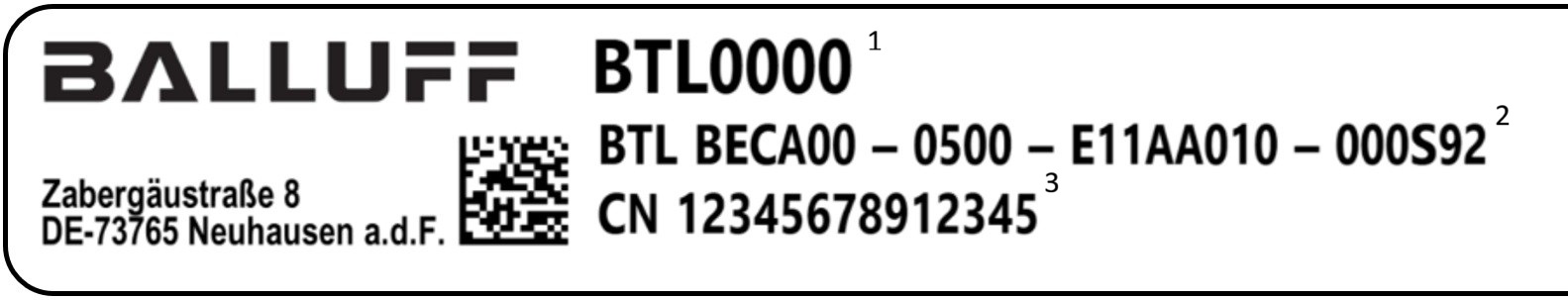

Part label

../../_images/BTL_BECA00%E2%80%930500%E2%80%93E11AA010%E2%80%93000S92_ohne_UL.jpg

Part label (excerpt, example)

Part label descriptions

Element

Description

1)

Order code

2)

Type

3)

Serial number

Type code

Example

BTL

BECA00

0500

E11AA010

000S92

Definition

BTL

aECb00

cccc

E11Ad010

000S92

Code

Parameter

Meaning

BTL

Sensor type

Magnetostrictive Linear Position Sensor

a

Rod version, fastening

B = Rod with metric mounting thread M18x1.5

Z = Rod with inch mounting thread 3/4” - 16UNF

b

Mechanical zero point

A = Zero point at 30 mm; rod end with thread (only for BTL B…)

E = Zero point at 50.8 mm; rod end with thread

cccc

Measuring length

Metric specification in mm; measuring length (0025…1200)

A

Interface

A = Analog

d

Output type

A = Voltage output 0…10 V, rising

E = Current output 4…20 mA, rising

1 = Voltage output 10…0 V, falling

5 = Current output 20…4 mA, falling

S92

Electrical Connection

5-pin, M12 plug
