Technical data

The specifications are typical values at 24 V DC, room temperature and a measuring length of 500 mm in conjunction with the BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R or BTL-P-1014-2R position magnet.

The product is immediately ready for operation, full accuracy is achieved after the warm-up phase.

Note

Further data can be found at www.balluff.com on the product page.

Ambient condition

Note

For UL: Type 1 (UL61010-1), indoor use only. Use in enclosed spaces and up to an altitude of 2000 m above sea level.

Parameter	Specification
Ambient temperature	−40…+85 °C
Storage temperature	−40…+100 °C
Relative humidity	≤ 90%, non-condensing
Operating pressure	≤ 450 bar
Short term pressure	750 bar (10 × 1 min)
Typ. temperature coefficient [1]	≤ 30 ppm/K
Shock rating as per EN 60068-2-27 [2], [3]	100 g/6 ms
Continuous shock per EN 60068-2-27 [2], [3]	50 g/2 ms
Vibration per EN 60068-2-6 [2], [3]	12 g, 10…2000 Hz
Protection per IEC 60529 (when threaded together) [4]	IP67, IP69K

Detection range/Measuring range

Detection range/Measuring range
Parameter	Specification
Measuring length	25…5000 mm
Repeat accuracy	≤ ±10 µm
Length-dependent measuring frequency
Measuring length ≤ 70 mm	8000 Hz
Measuring length > 70… ≤ 170 mm	5000 Hz
Measuring length > 170… ≤ 240 mm	4000 Hz
Measuring length > 240… ≤ 590 mm	2000 Hz
Measuring length > 590… ≤ 1270 mm	1000 Hz
Measuring length > 1270… ≤ 2650 mm	500 Hz
Measuring length > 2650… ≤ 5000 mm	250 Hz
Linearity deviation [5]
with measuring length ≤ 500 mm	±30 μm
with measuring length > 500 mm	±50 μm
Detectable speed	≤ 10 m/s
Velocity resolution	0.1 mm/s

Electrical data

Parameter	Specification
Operating voltage Ub [6]	10…30 V DC
Typical current draw (at 24 V DC)	≤ 60 mA
Typical power consumption	≤ 1,5 W
Maximal power consumption [7]	≤ 2,8 W
Overvoltage protection	Ub up to 36 V DC
Voltage-proof up to (GND – Housing)	500 V DC

Electrical connection

Parameter	Specification
Short circuit protection	Signal output to GND and to 30 V DC
Protected against polarity reversal	Ub up to 30 V DC

Interfaces

Note

To avoid interference with SSI communication, the SSI and IO-Link interface must not be used simultaneously!

SSI interface

Parameter	Specification
Number of bits	Configurable
Coding	Binary or Gray
Characteristic	Rising or falling
SSI data	Configurable
SSI clock frequency f_CLK	10 kHz…1 MHz
Short-circuit protection	Signal lines Data+/–, Clk+/– to +36 V or GND

Configuration interface

Parameter	Specification
Interface	IO-Link
Transfer protocol	1.1
Transmission rate	COM3 (230.4 kBaud)
Output value	None

Materials

Parameter	Specification
Housing material	Stainless steel
Rod material	Stainless steel

Mechanical features

Parameter	Specification
Rod diameter	10.2 mm
Weight (depends on length)	Approx. 1 kg/m
Rod wall thickness	2 mm
Housing mounting via threads
BTL B…	M18×1.5
BTL Z…	3/4“-16UNF

Connector version

Parameter	Specification
Min. cable temperature	−40…+85 °C

Connection to the evaluation unit

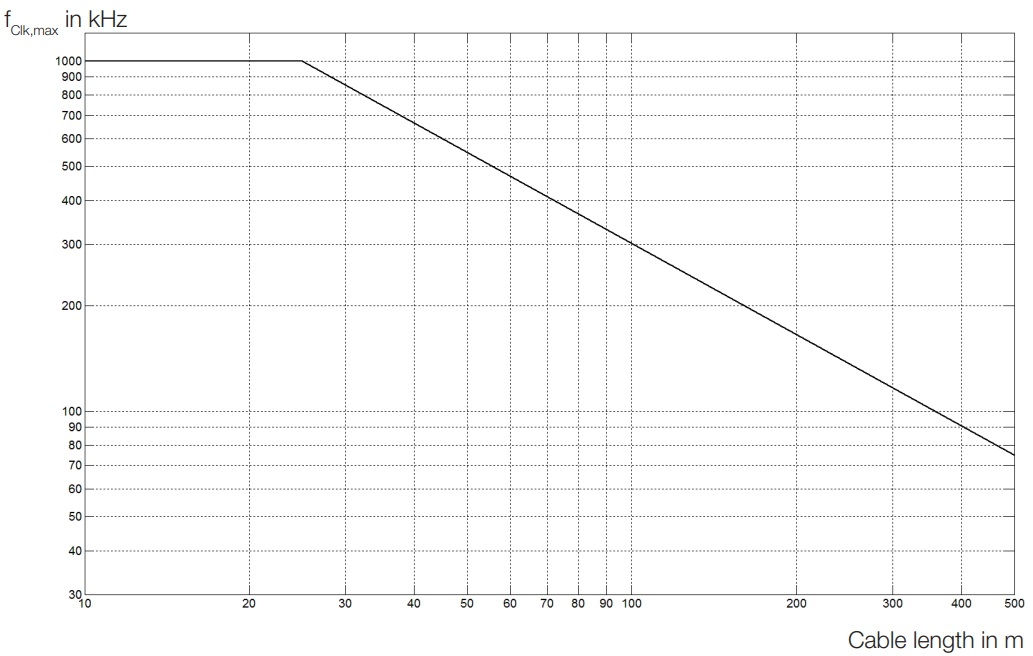

The maximum SSI clock frequency f_CLK, max is dependent on the cable length [8]:

../../_images/ssi_cable_length.png — Maximum SSI clock frequency depending on the cable length

Approvals and markings

Marking	Meaning
	The monitoring sensors BTL Basic Rod Series are restricted for use in industrial machinery applications as defined in the Electrical Standard for Industrial Machinery, NFPA 79.
	The CE Mark verifies that our products meet the requirements of the current EU Directive.

Note

Additional information on directives, approvals and standards can be found at www.balluff.com on the product page.
