Radarsensor M30 Documentation

About this guide

Validity

This guide provides extensive information about the IO-Link configuration of the following product:

Product description

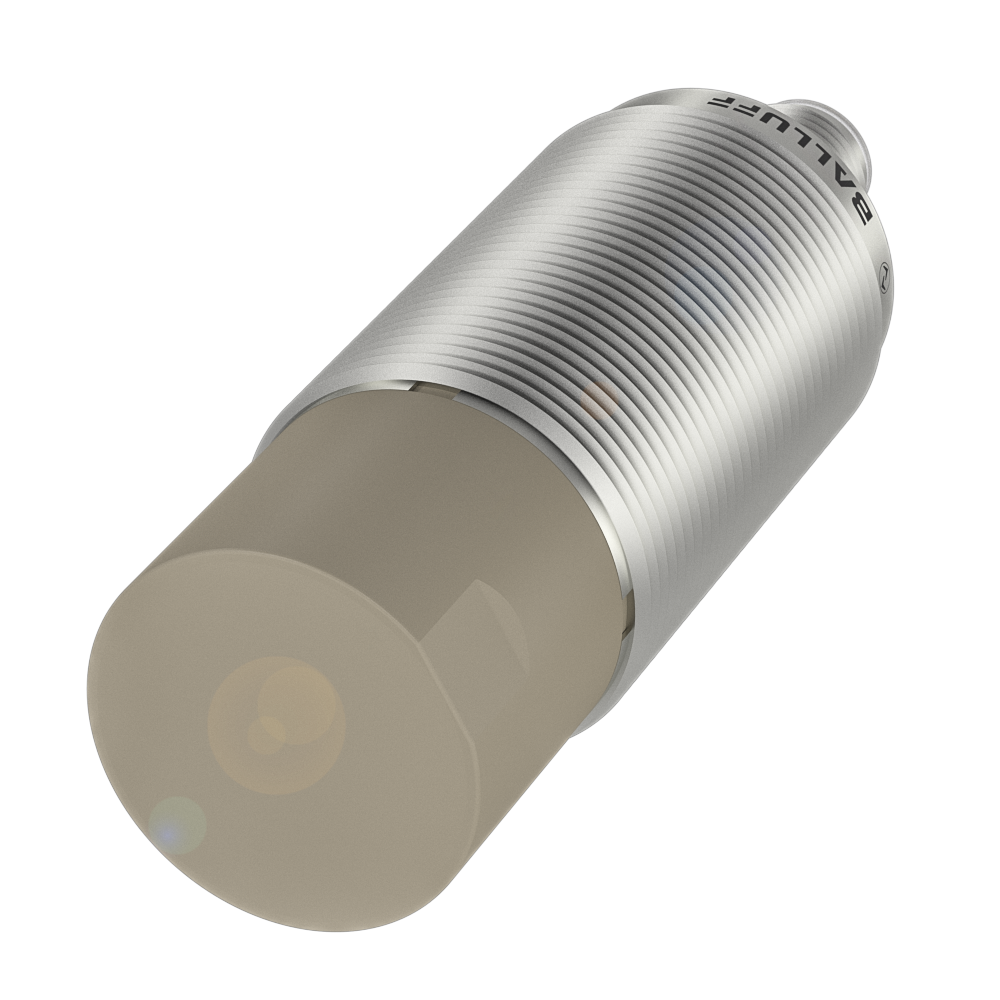

Type: BRS S–M30S04–0301–LA2–000S04

Order code: BRS0002

Note

The configuration guide does not replace the user’s guide. Read the appropriate user’s guide and the other applicable documents completely before installing and operating the product.

About this Guide

This guide was created in English. Other language versions are translations of this guide.

© Copyright 2026, Balluff GmbH Zabergäustraße 8, 73765 Neuhausen auf den Fildern

All content is protected by copyright. All rights reserved, including the right to reproduce, publish, edit and translate this document.

Symbols and conventions

Individual action instructions are indicated by a preceding triangle.

► Instruction 1

Action sequences are numbered:

  1. Instruction 1

  2. Instruction 2

Numbers unless otherwise indicated are decimals (e.g. 23). Hexadecimal numbers are represented with a preceding 0x (e.g. 0x12AB).

Note

This block indicates general notes.

Technical terms and abbreviations used

AdSS

Adjustable Switching Sensor

IODD

IO-Device-Description

ISDU

IO-Link-Parameter (Index Service Data Unit)

LSB

Least Significant Bit

LSSC

Legacy Smart Sensor Channel

MSB

Most Significant Bit

PD

Process data

RMS

Root Mean Square

SSC

Switching Signal Channel

SP

Set Point
