Strobelight
Description
Note
The strobelight functionality is available only for product variants BNI IOL-81x-K037
The Strobelight functionality has various conffiguration options. The Strobelight can have different animation patterns:
single storbe
double strobe
tripple strobe

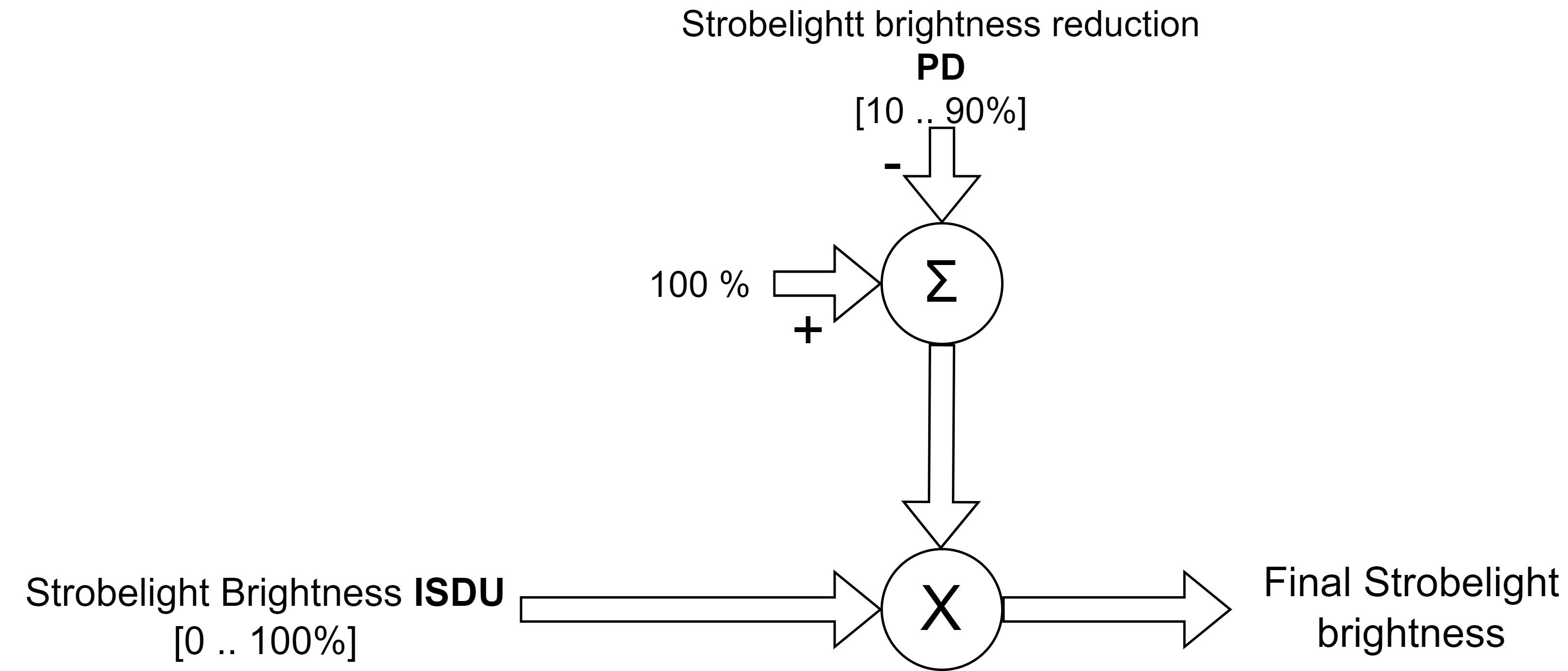

The speed ot the animation is also configurable. The brightness of the Strobelight is configurable in a two steps:
The brightness value is defined by an ISDU in the first stage. The intended use of the Brightness ISDU is setting the brightness once, in case the default value is not proper for the current application. There is a second stage for the brightness correction, which is called brightness reduction. This can be done via process data. The intended use of this brightness value is reducing the brightness temporary. With the temporary reduction the brightness can be reduced for example during the night shift.
Process Data
Note
Only mode dependent bytes are described in these chapter.
Byte |
Description |
|---|---|
Byte 0…2 |
Defined by other primary device functions |
Byte 3 |
Strobelight control |
Byte 3 … xx |
Not used in this mode |
Strobelight brightness reduction
The brightness of the Strobelight can be changed via ISDU and process data. The conbination of the two settings will result the brightness of the main signal LEDs.
Value |
Description |
|---|---|
0 |
No reduction |
1…9 |
Reduction by 10% … 90% |
11…15 |
Reduce by 90% |
Strobelight animation pattern
Value |
Description |
|---|---|
0 |
Strobelight off |
1 |
Single strobe |
2 |
Double strobe |
3 |
Tripple strobe |
Strobelight animation speed
Value |
Description |
Single strobe |
Double strobe |
|---|---|---|---|
0 |
Slow |
1 Hz |
2/3 Hz |
1 |
Medium |
2 Hz |
1 Hz |
2 |
Fast |
5 Hz |
1.5 Hz |
3 |
Very fast |
10 Hz |
2 Hz |
ISDU
Name |
Index |
Subindex |
Access |
Length |
Data Type |
DataStorage |
Default |
|---|---|---|---|---|---|---|---|
Strobelight brightness |
0x01CC (460) |
0 |
R/W |
1 byte |
UINT8 |
Yes |
100 |
Strobelight brightness
The brightness of the Strobelight can be set as a percent value. Values from 0 to 100 are allowed. By default the Strobelight is dimmed.
System Commands
Command Value |
Device Action |
|---|---|
0x81 (129) |
Application Reset – Reset ISDUs of Strobelight functionality to the default value. |
0x82 (130) |
Restore Factory Settings – Reset ISDUs of Strobelight functionality to the default value. |
For an overview of all System Commands, see section System Commands.
